Tube Laser Cutting Series

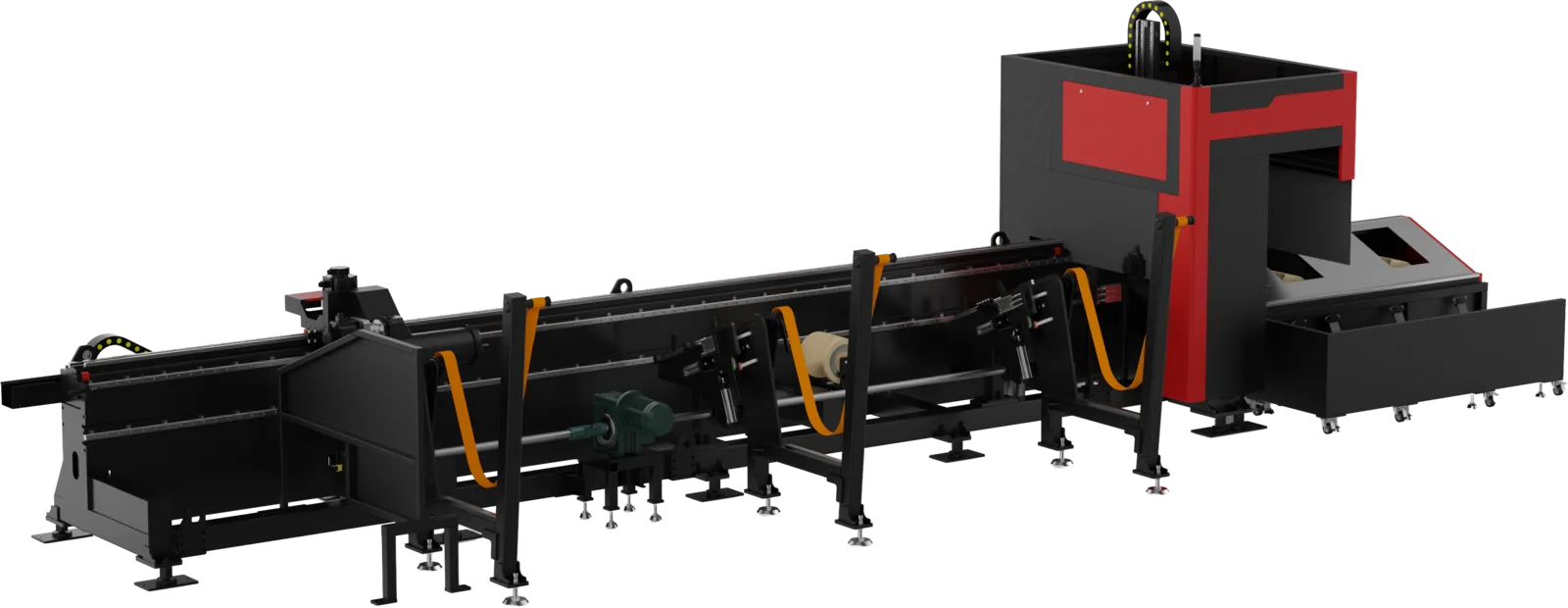

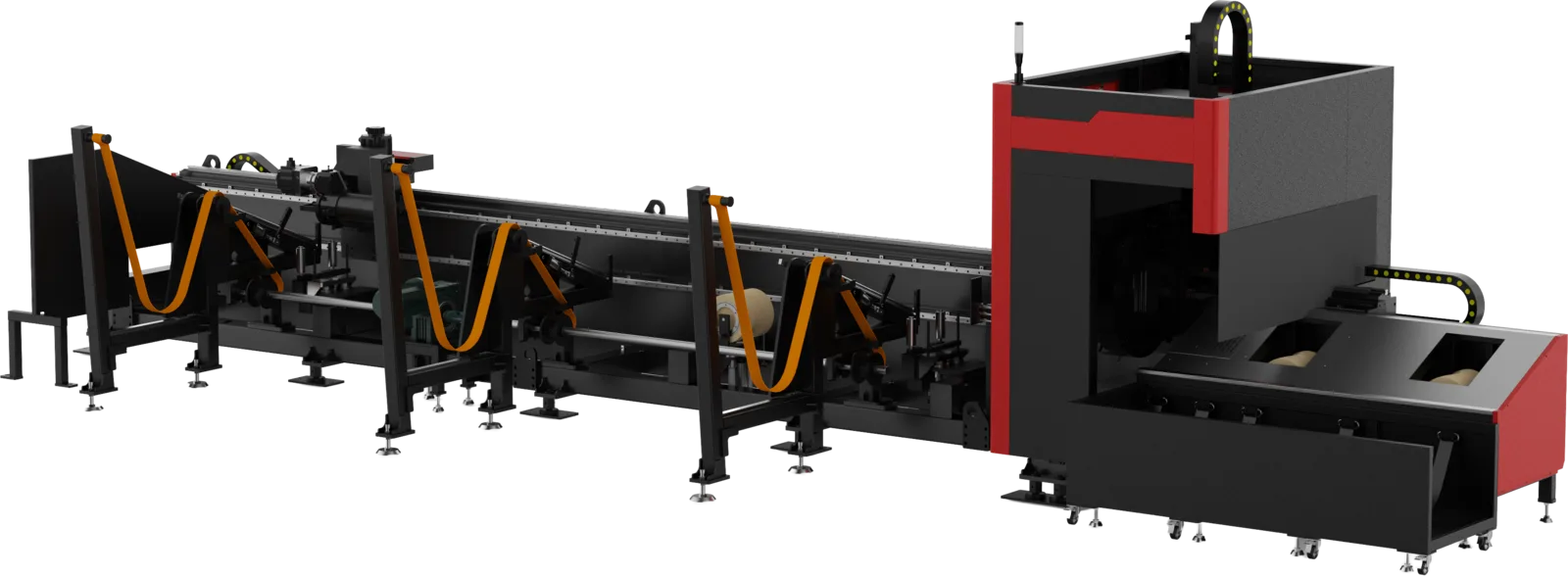

Two Chucks Fiber Tube Cutter

Faster Cutting. Greater Flexibility. Higher Output.

High-Speed Processing
Fast & Accurate Motion
Versatile Tube Cutting
Ideal for Short Parts

Learn more about these advantages ↓

Get a Quote WhatsApp

Product Advantages

Faster Cutting. Greater Flexibility. Higher Output.

High-Speed Processing

Built for Productivity

Dual chucks work together to achieve rapid movement and high acceleration, significantly improving tube cutting efficiency.

Fast & Accurate Motion

Speed Without Compromise

Optimized motion control ensures smooth, stable operation while maintaining excellent cutting accuracy at high speeds.

Versatile Tube Cutting

Compatible with Multiple Profiles

Effortlessly process round tubes, square tubes, oval tubes, rectangular tubes, angle steel, channel steel, I-beams and other common tube profiles with consistent results.

Ideal for Short Parts

Optimized for Finished Parts Under 3 Meters

Designed for efficient production of tube components with finished lengths under 3 meters, delivering high productivity and consistent quality.

Note: Images are for reference only. Actual product may differ slightly from images.

Technical Specifications

The models shown below represent only a selection of our product portfolio.More configurations and customized solutions are available to meet different application needs and production requirements.

Parameter	Specification
Chuck Size Self-centering Pneumatic Chuck	120/170
Loading Length	6000-9000mm
Chuck Weight Capacity	1.5T
Unloading Length	Customizable
Chuck Overtravel	Optional Configuration
Chuck Overtravel Tailings / Optional Zero-Tailings ≤	60mm
(This is achievable under reasonable process layout conditions, provided that the last workpiece is ≥	1000 mm or realized through micro-joints.)
Bevel Cutting Angle (Optional)	±45°
Processing Tube (Length, Diameter)	6000-9000mm ф10-ф120/170mm
Y-Axis Travel	6000mm
X, Y Axis Positioning Accuracy	±0.05mm
X, Y Axis Repeatability	±0.03mm
Overall Dimensions of Main Machine (L × W × H) (mm)	≈ 11000 × 3500 × 2600

Specifications are subject to laser power and configuration options. Contact our engineers for a detailed technical proposal tailored to your materials and production volume.

Need Something Different?

If our standard models don't perfectly match your production needs, our engineering team can customize a solution built around your materials, workflow, and volume.
