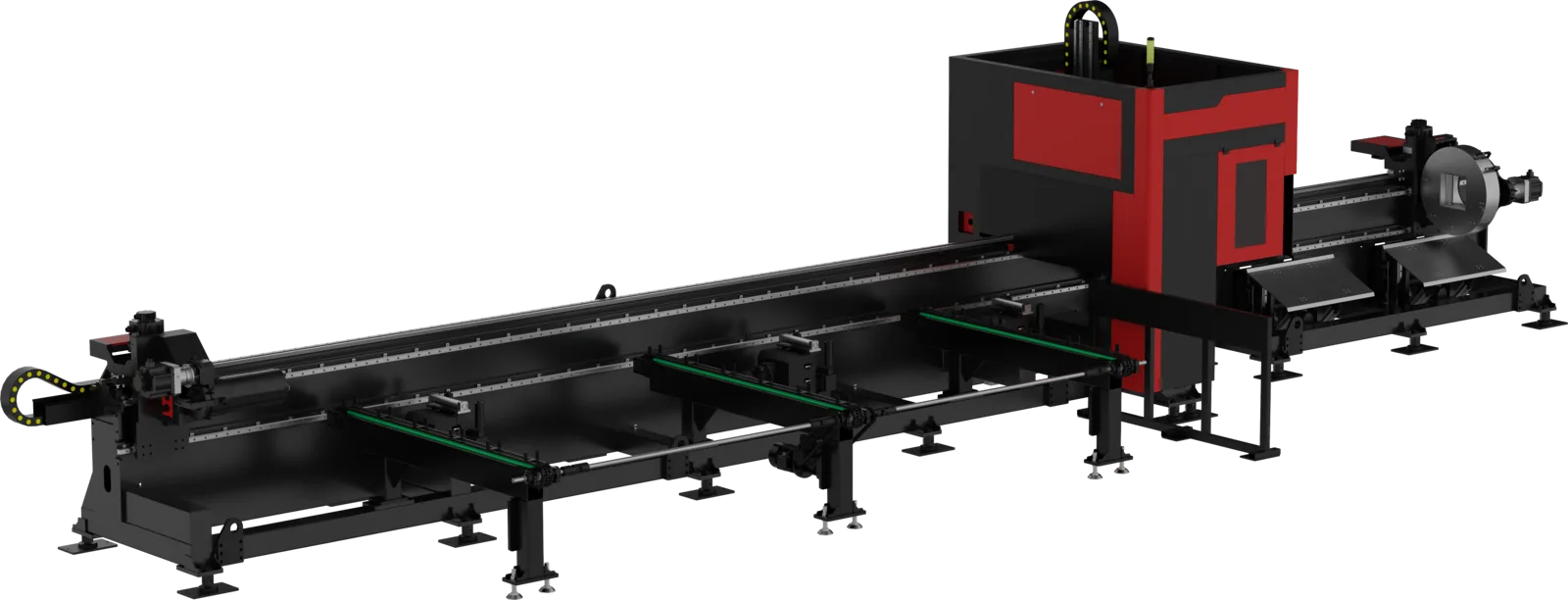

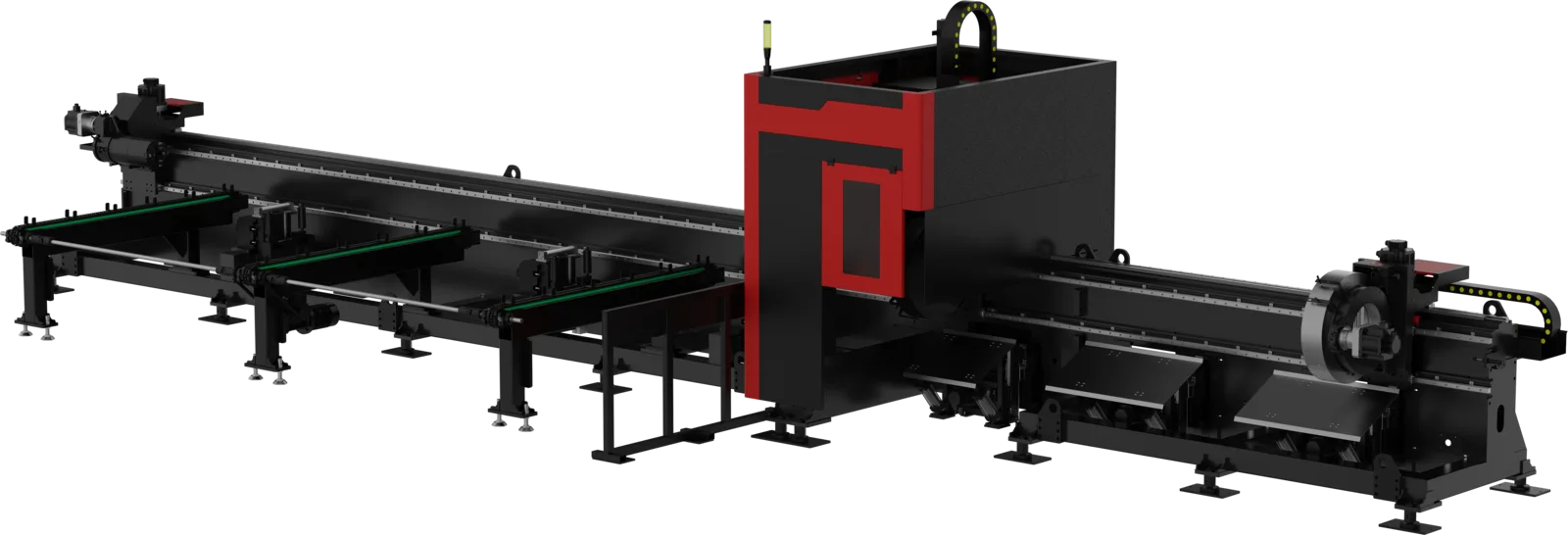

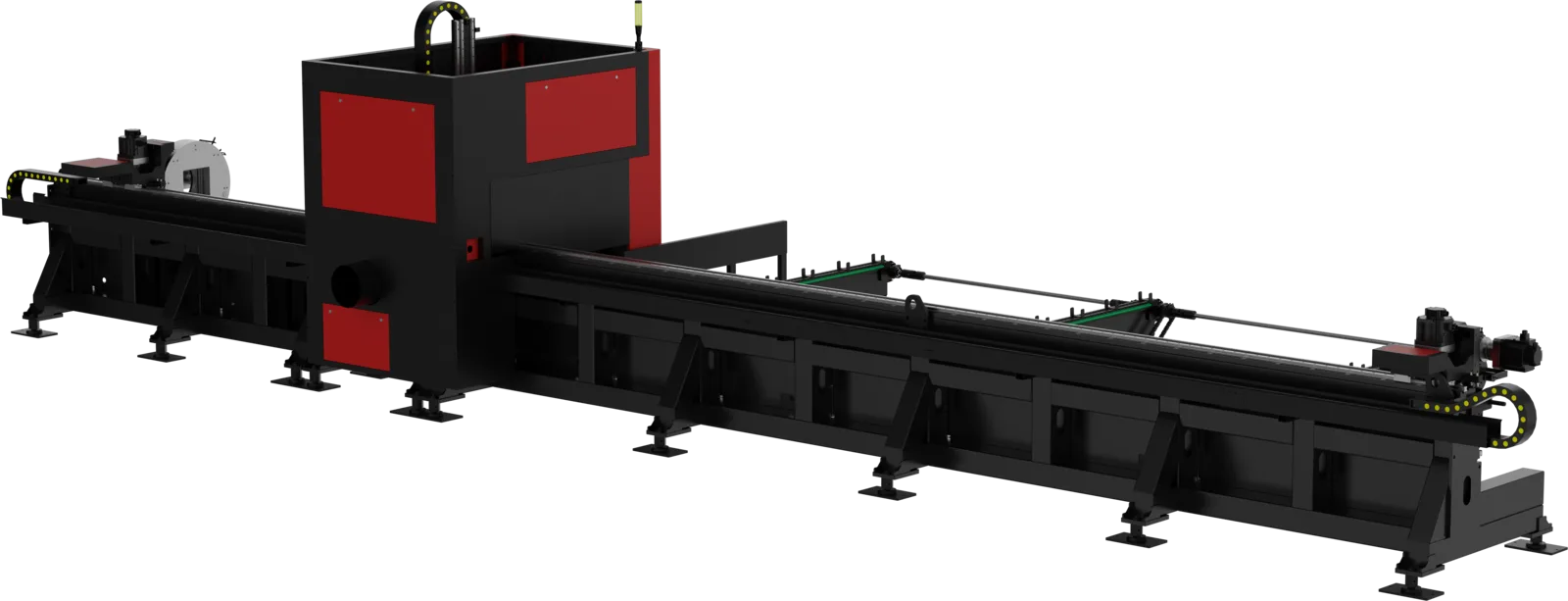

Three Chucks Fiber Tube Cutter — CHYLASER 1 / 3
Tube Laser Cutting Series

Three Chucks Fiber Tube Cutter

Maximize Every Tube. Minimize Every Cost.

  • Zero Material Waste
  • Stable Heavy-Tube Processing
  • Enhanced Rigidity
  • Ideal for High-Value Materials
Learn more about these advantages ↓
Get a Quote WhatsApp
Product Advantages

Maximize Every Tube. Minimize Every Cost.

Maximize Every Tube
Zero Material Waste

Maximize Every Tube

The advanced chuck system enables zero remnant cutting by continuously feeding and supporting the tube, helping maximize material utilization and reduce raw material costs.

Built for Large & Heavy Tubes
Stable Heavy-Tube Processing

Built for Large & Heavy Tubes

Additional support points improve stability during rotation, effectively minimizing tube sagging and deformation when processing heavy workpieces.

Stronger Support, Better Results
Enhanced Rigidity

Stronger Support, Better Results

The multi-chuck design provides superior machine rigidity, ensuring higher cutting accuracy and consistent performance throughout the cutting process.

Reduce Costs, Increase Efficiency
Ideal for High-Value Materials

Reduce Costs, Increase Efficiency

Perfect for expensive materials and heavy-duty tube applications where maximizing yield and minimizing waste directly improve profitability.

Note: Images are for reference only. Actual product may differ slightly from images.

Technical Specifications

The models shown below represent only a selection of our product portfolio.More configurations and customized solutions are available to meet different application needs and production requirements.

ParameterSpecification
Chuck Size Self-centering Pneumatic Chuck360/600
Loading Length6000-12000mm
Chuck Weight Capacity1.2T/3T
Unloading LengthCustomizable
Chuck OvertravelOptional Configuration
Bevel Cutting Angle (Optional)±45°
Processing Tube (Length, Diameter)6000-12000mm ф20/50-ф360/600mm
Y-Axis Travel12000mm
X, Y Axis Positioning Accuracy±0.05mm
X, Y Axis Repeatability±0.03mm
Overall Dimensions of Main Machine (L × W × H) (mm)≈ 18270 × 4500 × 2700

Specifications are subject to laser power and configuration options. Contact our engineers for a detailed technical proposal tailored to your materials and production volume.

Need Something Different?

If our standard models don't perfectly match your production needs, our engineering team can customize a solution built around your materials, workflow, and volume.

Request Custom Solution
