Sheet-Tube Combined Series

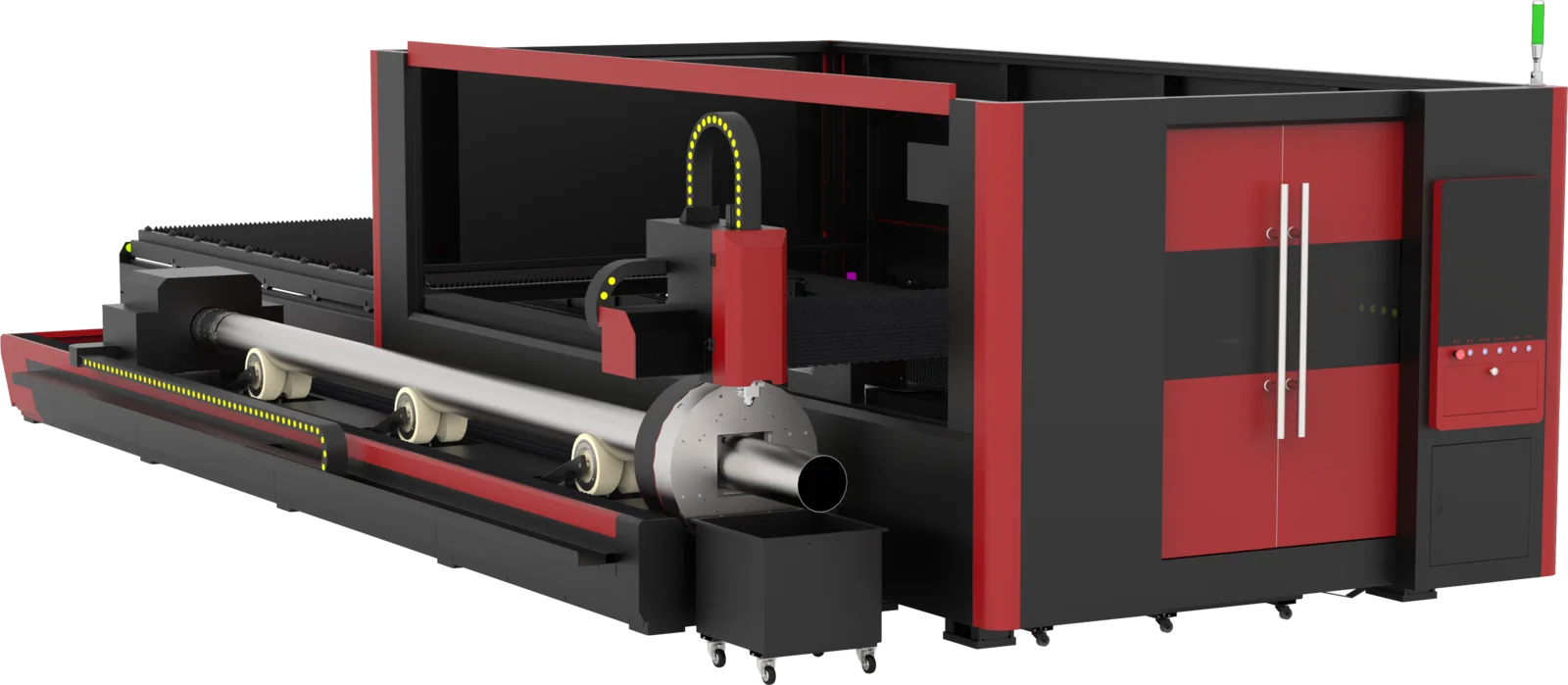

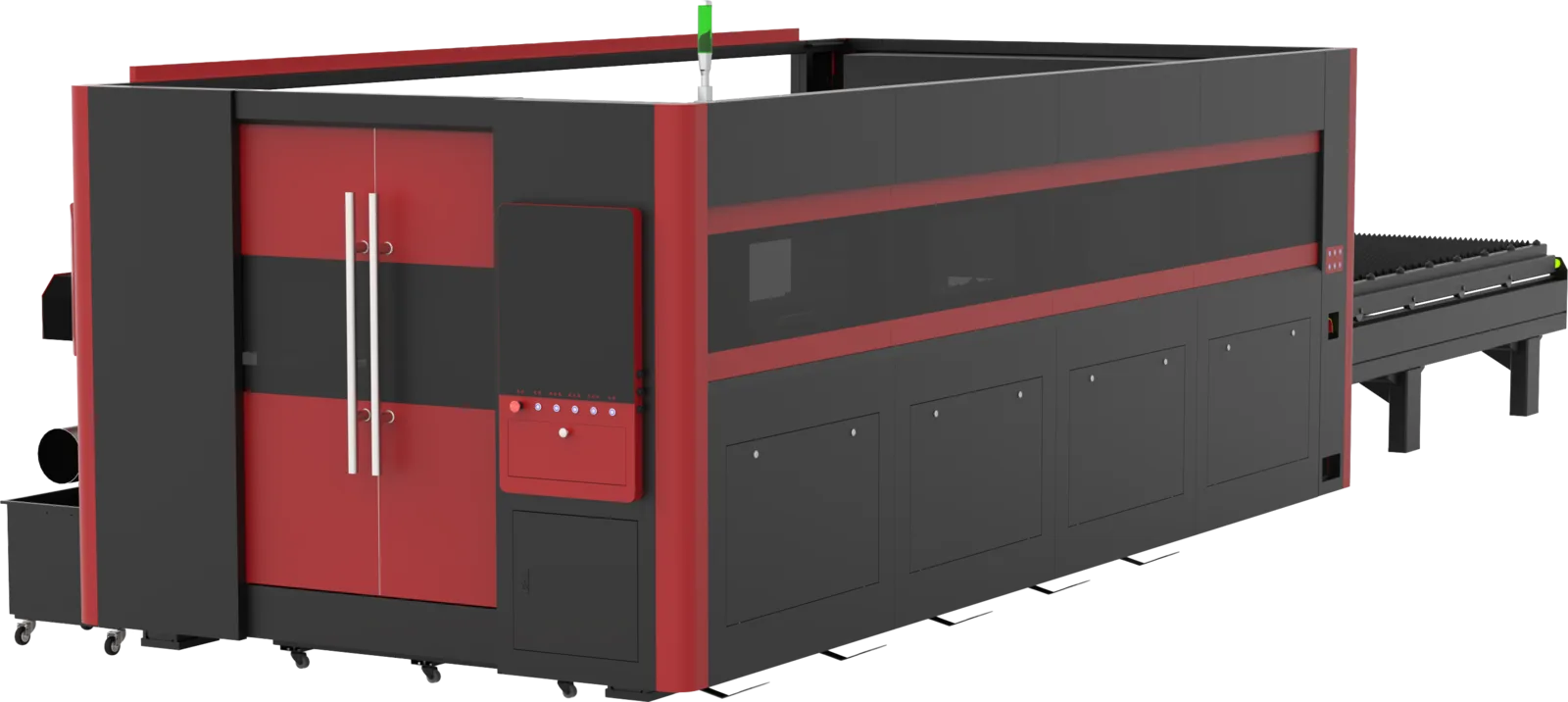

Sheet-Tube Combined Cutter

One Machine. Two Capabilities. Endless Possibilities.

  • Dual-Purpose Design
  • Save Space & Investment
  • Flexible for Diverse Jobs
  • Ideal for Growing Businesses
Learn more about these advantages ↓
Product Advantages

One Machine. Two Capabilities. Endless Possibilities.

Dual-Purpose Design

Cut Sheets & Tubes with One Machine

Handle both sheet metal and tube processing on a single platform, eliminating the need for separate machines and maximizing production flexibility.

Save Space & Investment

More Capability, Less Footprint

Reduce equipment costs and floor space requirements by combining two processing functions into one efficient solution.

Flexible for Diverse Jobs

Adapt to Changing Production Needs

From metal sheets to handrails, frames, and tubes, easily process a wide variety of workpieces with fast changeovers and minimal setup time.

Ideal for Growing Businesses

One Machine, Endless Possibilities

Perfect for automotive repair, agricultural equipment maintenance, signage production, and custom fabrication shops that require versatile metal processing capabilities.

Technical Specifications

The models shown below represent only a selection of our product portfolio.More configurations and customized solutions are available to meet different application needs and production requirements.

ParameterHYBA-3015HYBA-4020HYBA-6020
Max. Cutting Sheet Size(L × W)3000 × 15004000 × 20006000 × 2000
Processing Tube Length (mm)6000-90006000-90006000-9000
Max. Pipe Diameterф170-280mmф170-280mmф170-280mm
X-Axis Travel (mm)260029502950
Y-Axis Travel (mm)302040206020
X, Y Axis Positioning Accuracy (mm)±0.05±0.05±0.05
X, Y Axis Repeatability (mm)±0.03±0.03±0.03
Max. Positioning Speed (X/Y Axis) (m/min)70-13970-13970-139
Max. Acceleration (X/Y Axis) (G)1.51.51.5
Overall Dimensions of Main Machine (L × W × H) (mm)≈ 8700 × 3500 × 2600≈ 8700 × 4000 × 2600≈ 8700 × 4000 × 2600

Specifications are subject to laser power and configuration options. Contact our engineers for a detailed technical proposal tailored to your materials and production volume.

Need Something Different?

If our standard models don't perfectly match your production needs, our engineering team can customize a solution built around your materials, workflow, and volume.
