Open Single Platform — CHYLASER 2 / 3
Sheet Laser Cutting Series

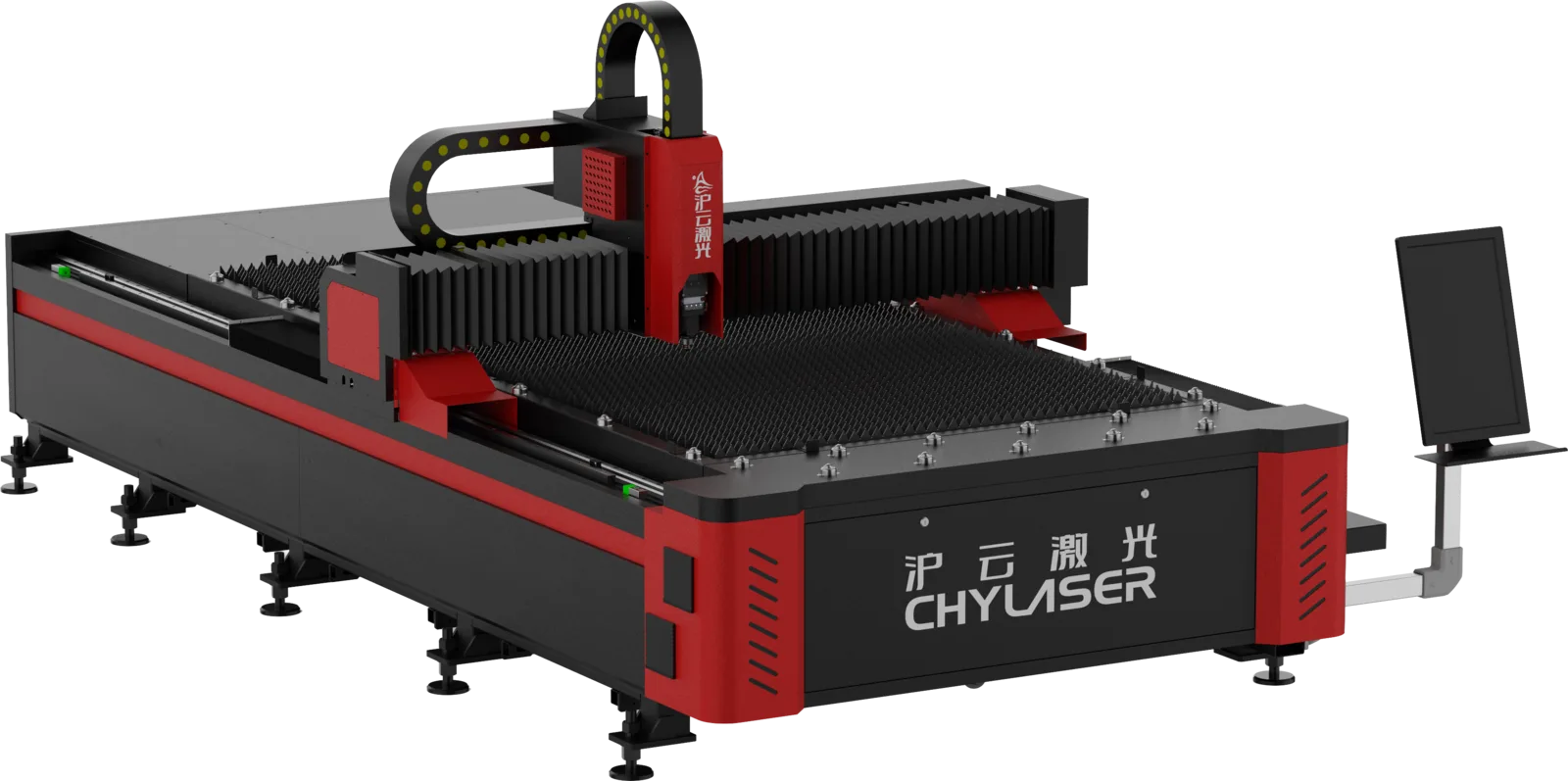

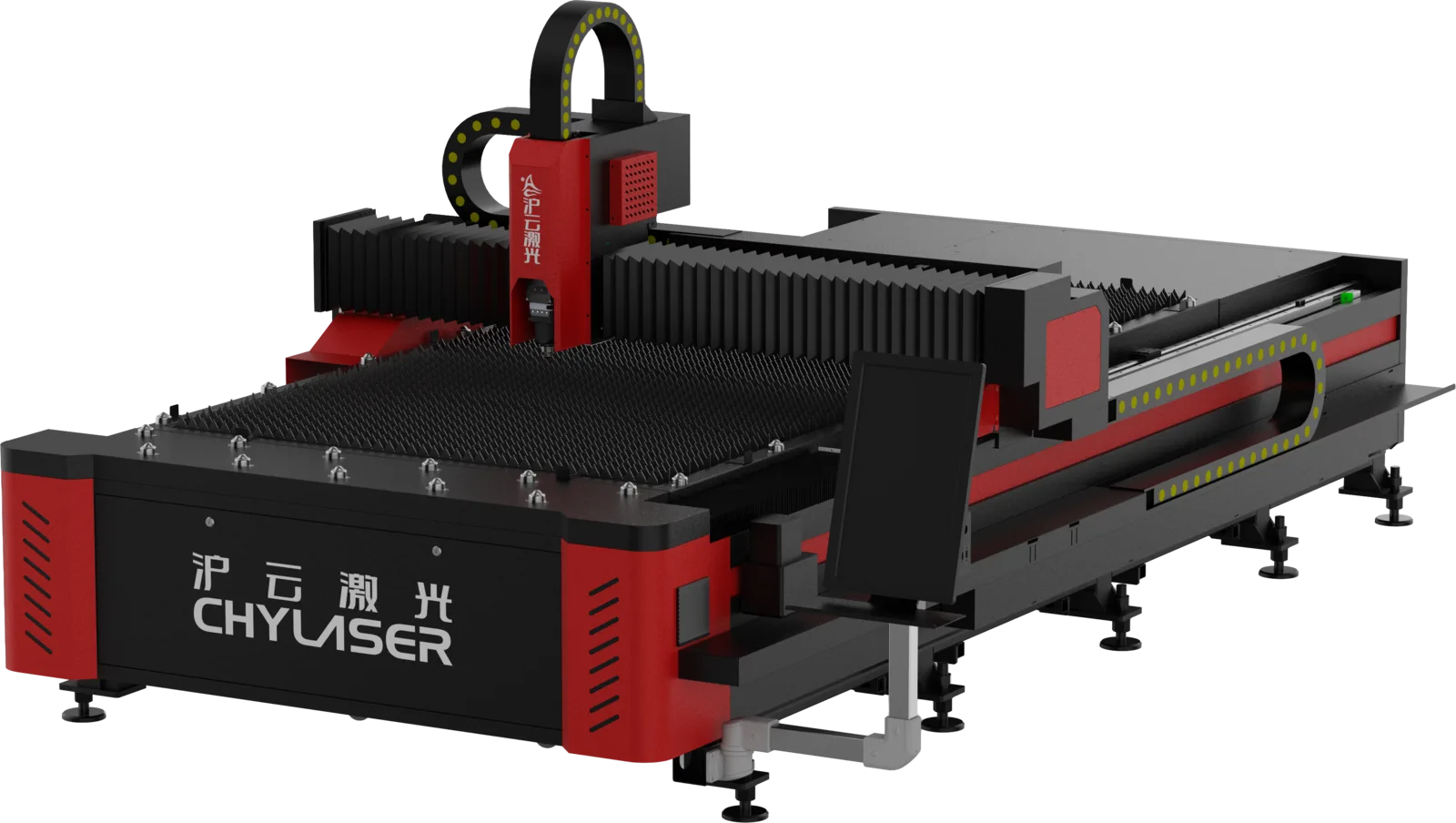

Open Single Platform

Compact Design. Quick Setup. Efficient Cutting.

  • Compact Footprint
  • Open-Frame Access
  • Clear Cutting Visibility
  • Fast Installation
Learn more about these advantages ↓
Available Models
HYCS-30153000 × 1500 mmHYCS-40154000 × 1500 mmHYCS-40204000 × 2000 mmHYCS-60156000 × 1500 mm
See full specifications ↓
Get a Quote WhatsApp
Product Advantages

Compact Design. Quick Setup. Efficient Cutting.

Space-Saving Design
Compact Footprint

Space-Saving Design

Compact structure reduces floor space requirements while maintaining strong cutting performance, ideal for efficient workshop layouts.

Easy Loading & Unloading
Open-Frame Access

Easy Loading & Unloading

Open design allows convenient material handling, improving workflow efficiency and reducing setup time.

Real-Time Monitoring
Clear Cutting Visibility

Real-Time Monitoring

Open platform structure provides direct visibility of the cutting process, making it easy to observe and control machining quality.

Ready to Cut in About an Hour
Fast Installation

Ready to Cut in About an Hour

Designed for quick setup and easy commissioning, the machine can be installed and ready for production in as little as one hour.

Note: Images are for reference only. Actual product may differ slightly from images.

Technical Specifications

The models shown below represent only a selection of our product portfolio.More configurations and customized solutions are available to meet different application needs and production requirements.

ParameterHYCS-3015HYCS-4015HYCS-4020HYCS-6015
Max. Cutting Sheet Size (L × W) (mm)3000 × 15004000 × 15004000 × 20006000 × 1500
X-Axis Travel (mm)1520152020201520
Y-Axis Travel (mm)3020402040206020
Z-Axis Travel (mm)100100100100
X, Y Axis Positioning Accuracy (mm)±0.05±0.05±0.05±0.05
X, Y Axis Repeatability (mm)±0.03±0.03±0.03±0.03
Max. Acceleration (X / Y Axis) (G)1.51.51.51.5
Max. Positioning Speed (X / Y Axis) (m/min)70–13970–13970–13970–139
Overall Dimensions (L × W × H) (mm)≈ 4630 × 2370 × 2250≈ 5820 × 2370 × 2250≈ 5740 × 2900 × 2250≈ 7900 × 2370 × 2250

Specifications are subject to laser power and configuration options. Contact our engineers for a detailed technical proposal tailored to your materials and production volume.
