Open Exchangeable Platform — CHYLASER 1 / 2
Sheet Laser Cutting Series

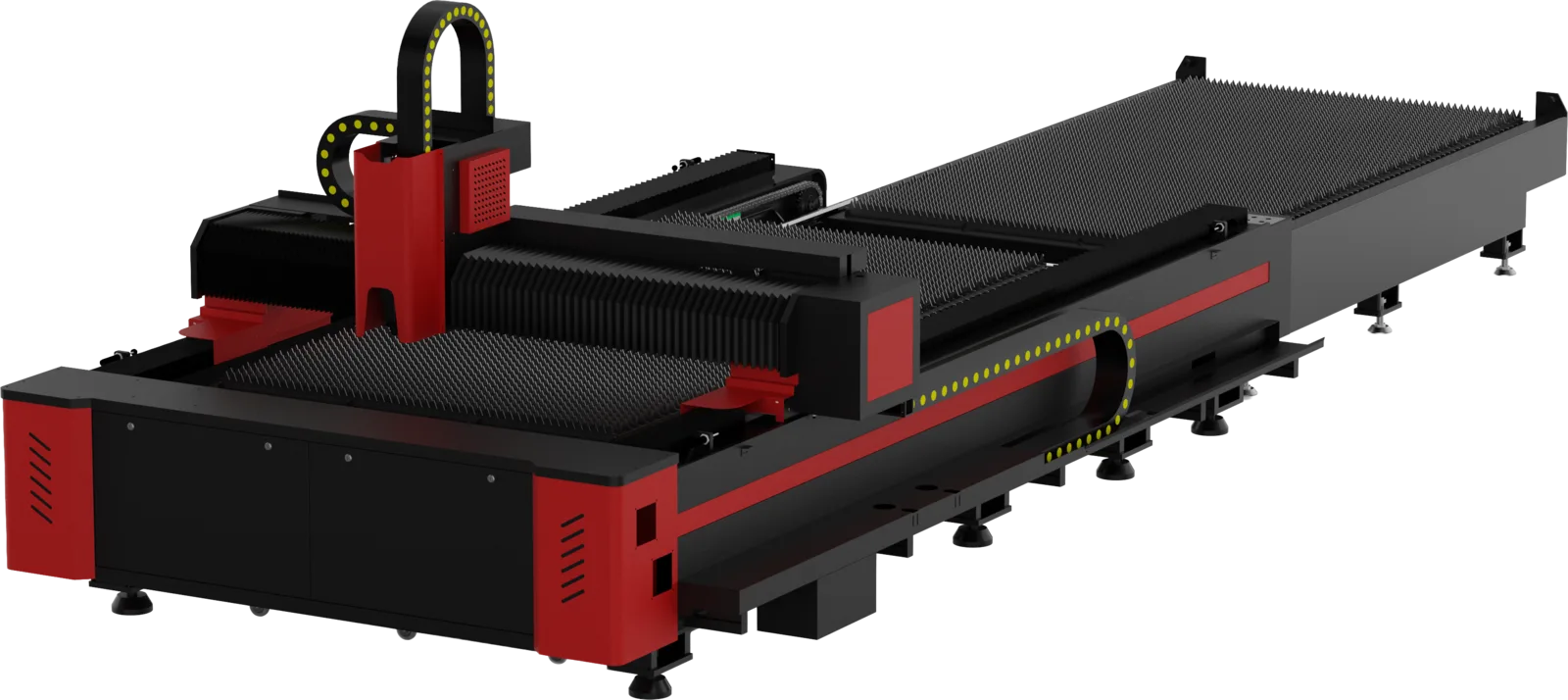

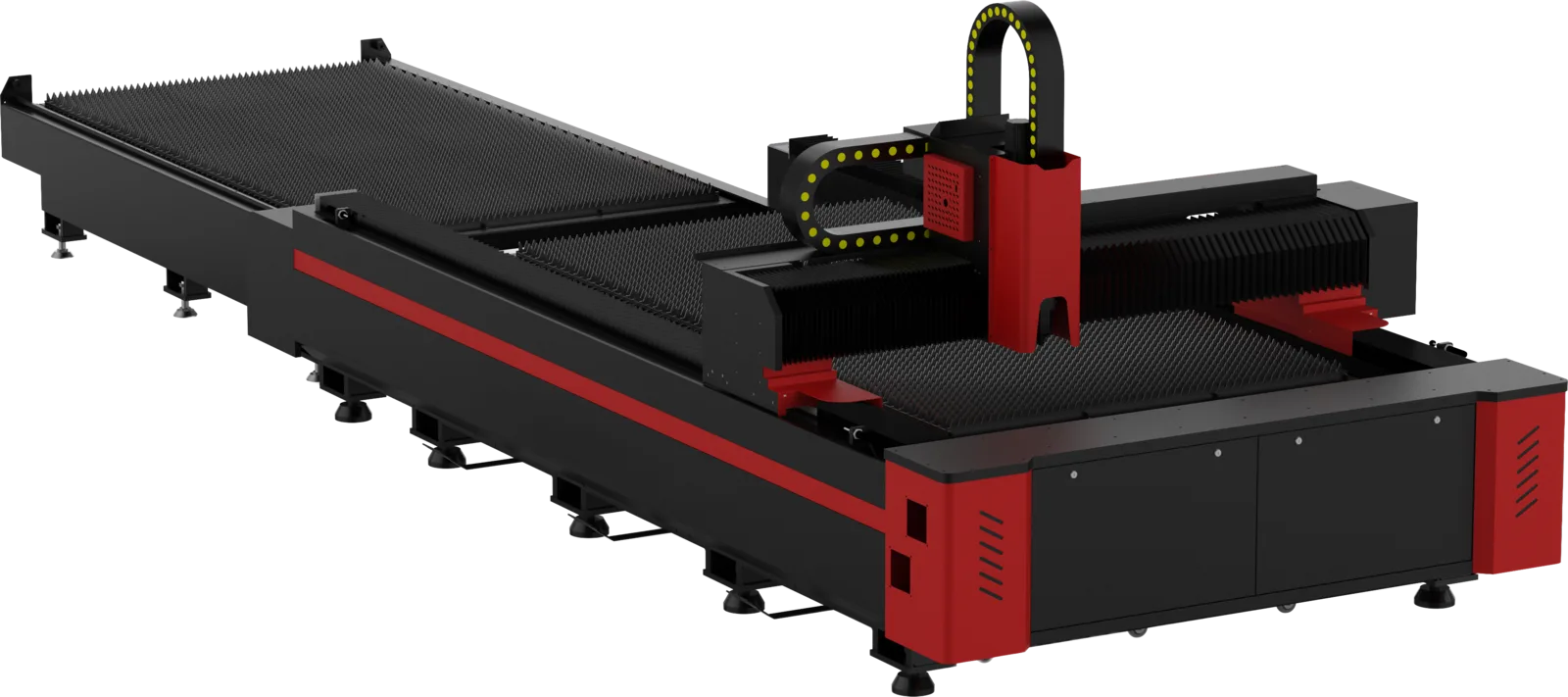

Open Exchangeable Platform

More Cutting Time. Less Downtime. Better Productivity.

  • Fast Loading
  • Continuous Production
  • Clear Process Visibility
Learn more about these advantages ↓
Available Models
HYCO-30153000 × 1500 mmHYCO-40204000 × 2000 mmHYCO-60206000 × 2000 mmHYCO-60256000 × 2500 mm
See full specifications ↓
Get a Quote WhatsApp
Product Advantages

More Cutting Time. Less Downtime. Better Productivity.

Save Valuable Production Time
Fast Loading

Save Valuable Production Time

The exchange table system significantly reduces loading time, improving workflow efficiency.

No Downtime Operation
Continuous Production

No Downtime Operation

Dual-platform design enables seamless material exchange, allowing cutting to continue without interruption.

Easy Monitoring of Cutting Results
Clear Process Visibility

Easy Monitoring of Cutting Results

Operators can clearly observe the cutting process, ensuring better quality control and real-time adjustments.

Note: Images are for reference only. Actual product may differ slightly from images.

Technical Specifications

The models shown below represent only a selection of our product portfolio.More configurations and customized solutions are available to meet different application needs and production requirements.

ParameterHYCO-3015HYCO-4020HYCO-6020HYCO-6025
Max. Cutting Sheet Size(L × W)3000 × 15004000 × 20006000 × 20006000 × 2500
X-Axis Travel (mm)1520202020202520
Y-Axis Travel (mm)3020402060206020
Z-Axis Travel (mm)300300300300
X, Y Axis Positioning Accuracy (mm)±0.05±0.05±0.05±0.05
X, Y Axis Repeatability (mm)±0.03±0.03±0.03±0.03
Max. Positioning Speed (X/Y Axis) (m/min)70-13970-13970-13970-139
Max. Acceleration (X/Y Axis) (G)1.51.51.51.5
Overall Dimensions of Main Machine (L × W × H) (mm)≈ 8600 × 2820 × 2300≈ 10650 × 3320 × 2300≈ 15000 × 3340 × 2300≈ 15000 × 3850 × 2450

Specifications are subject to laser power and configuration options. Contact our engineers for a detailed technical proposal tailored to your materials and production volume.

Need Something Different?

If our standard models don't perfectly match your production needs, our engineering team can customize a solution built around your materials, workflow, and volume.
