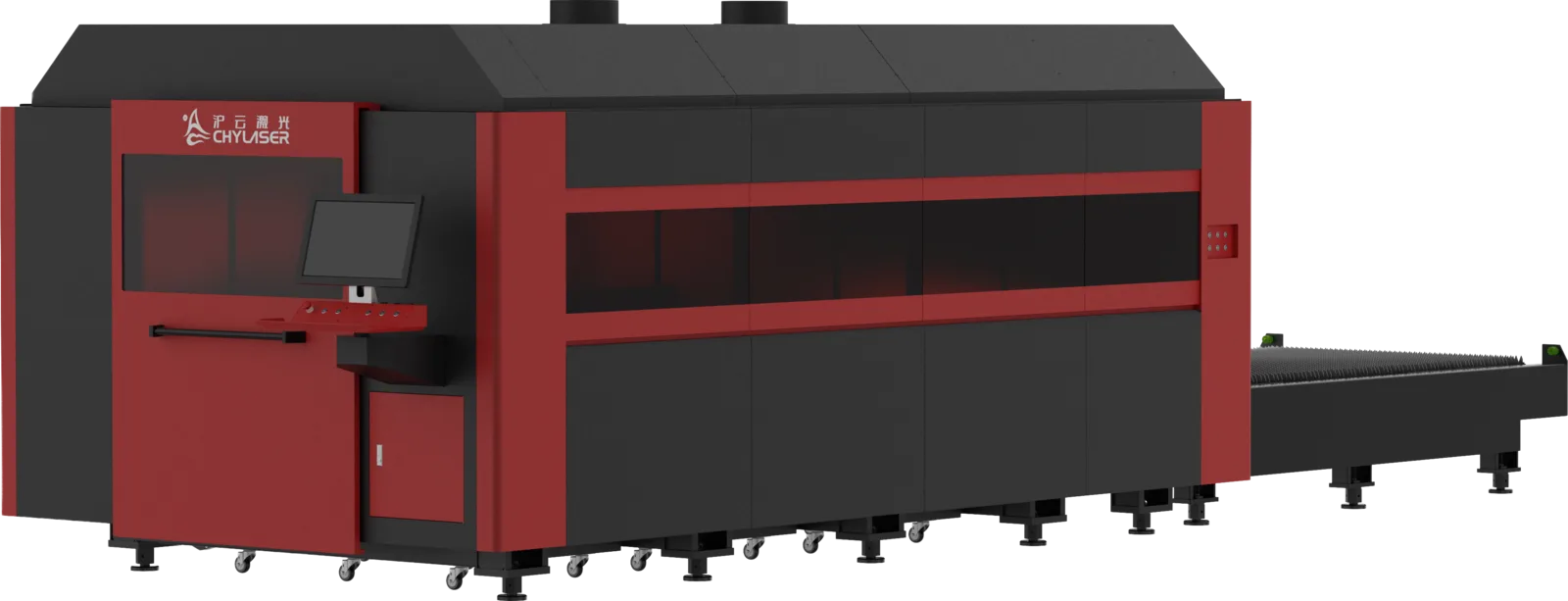

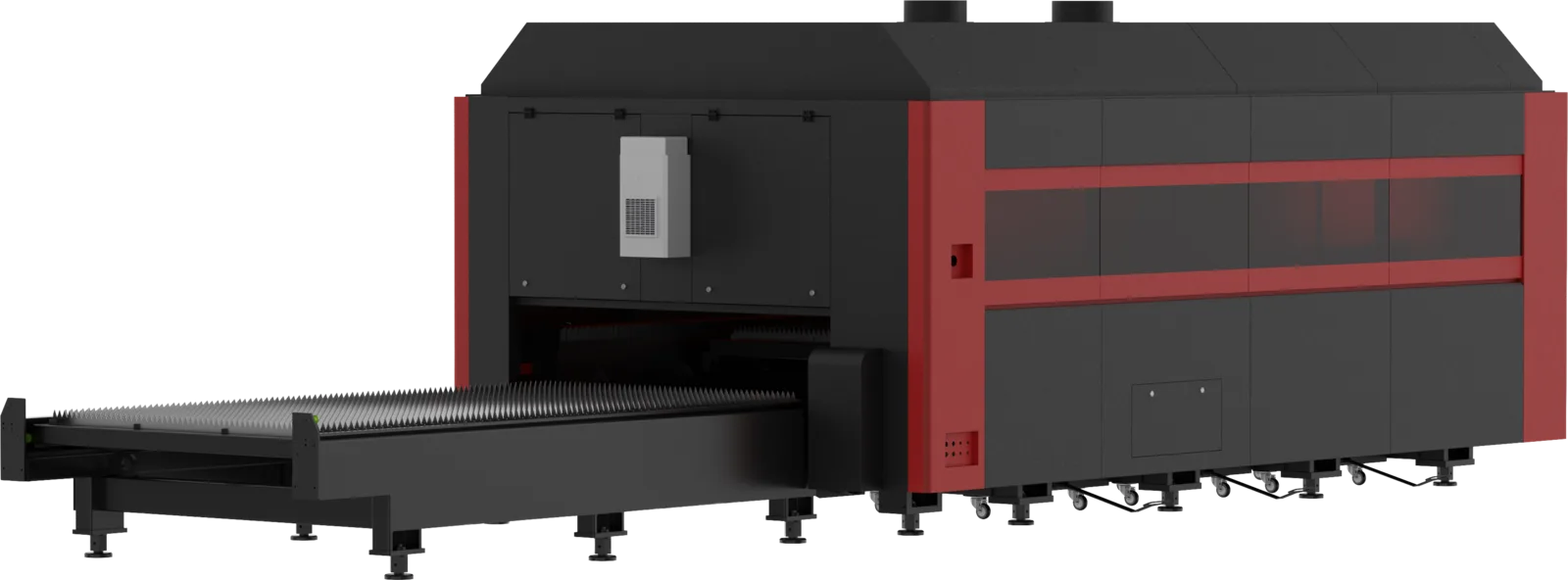

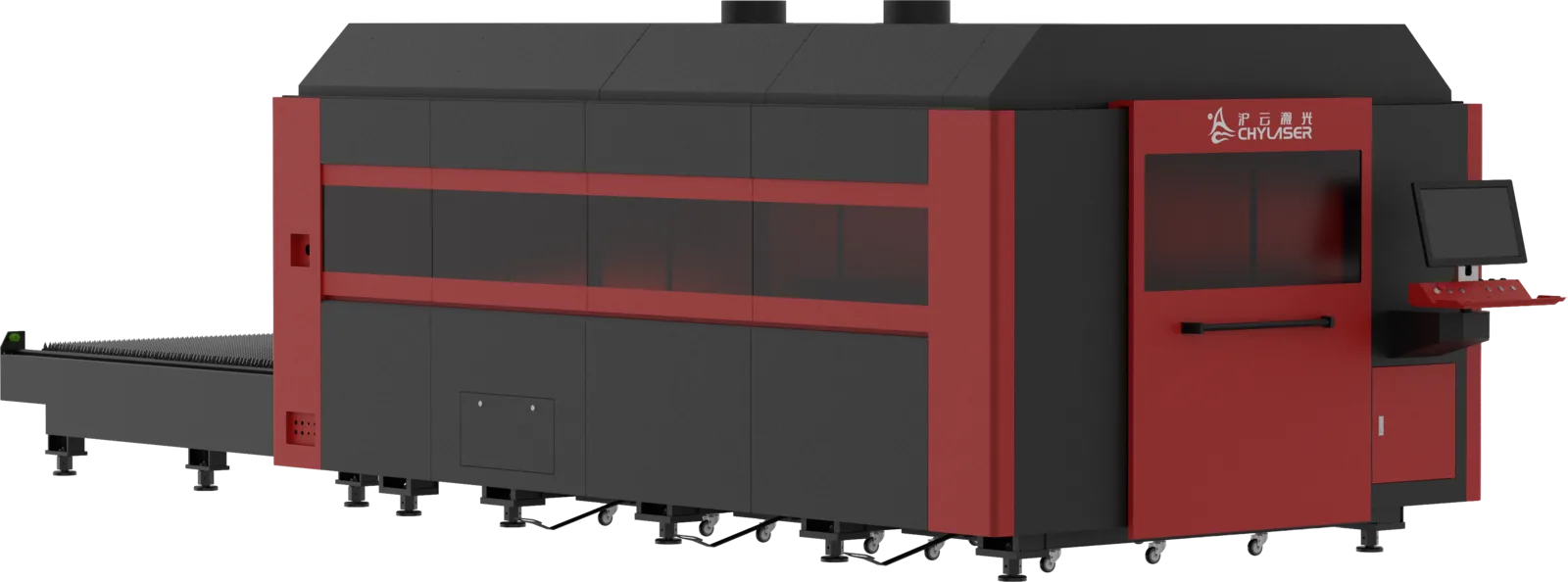

Fully Protective Exchangeable Platform — CHYLASER 1 / 3
Sheet Laser Cutting Series

Fully Protective Exchangeable Platform

Safer Cutting. Faster Throughput. Greater Productivity.

  • Fully Enclosed Design
  • Fast Table Exchange
  • Stable & Efficient Production
Learn more about these advantages ↓
Available Models
HYCA-30153000 × 1500 mmHYCA-40204000 × 2000 mmHYCA-60206000 × 2000 mmHYCA-60256000 × 2500 mm
See full specifications ↓
Get a Quote WhatsApp
Product Advantages

Safer Cutting. Faster Throughput. Greater Productivity.

Safer Working Environment
Fully Enclosed Design

Safer Working Environment

The fully enclosed structure prevents dust and sparks from escaping, ensuring a cleaner and safer production area.

Save Loading Time
Fast Table Exchange

Save Loading Time

Dual exchange tables significantly reduce loading time, improving overall production efficiency.

Continuous High-Performance Cutting
Stable & Efficient Production

Continuous High-Performance Cutting

Combines safety and efficiency, enabling uninterrupted cutting while maintaining a controlled industrial environment.

Note: Images are for reference only. Actual product may differ slightly from images.

Technical Specifications

The models shown below represent only a selection of our product portfolio.More configurations and customized solutions are available to meet different application needs and production requirements.

ParameterHYCA-3015HYCA-4020HYCA-6020HYCA-6025
Max. Cutting Sheet Size(L × W)3000 × 15004000 × 20006000 × 20006000 × 2500
X-Axis Travel (mm)1520202020202520
Y-Axis Travel (mm)3020402060206020
Z-Axis Travel (mm)300300300300
X, Y Axis Positioning Accuracy (mm)±0.05±0.05±0.05±0.05
X, Y Axis Repeatability (mm)±0.03±0.03±0.03±0.03
Max. Positioning Speed (X/Y Axis) (m/min)70-13970-13970-13970-139
Max. Acceleration (X/Y Axis) (G)2.02.02.02.0
Overall Dimensions of Main Machine (L × W × H) (mm)≈ 8600 × 2820 × 2300≈ 10650 × 3320 × 2300≈ 15000 × 3340 × 2300≈ 15000 × 3850 × 2450

Specifications are subject to laser power and configuration options. Contact our engineers for a detailed technical proposal tailored to your materials and production volume.

Need Something Different?

If our standard models don't perfectly match your production needs, our engineering team can customize a solution built around your materials, workflow, and volume.

Request Custom Solution
