Four Chucks Fiber Tube Cutter — CHYLASER 1 / 2
Tube Laser Cutting Series

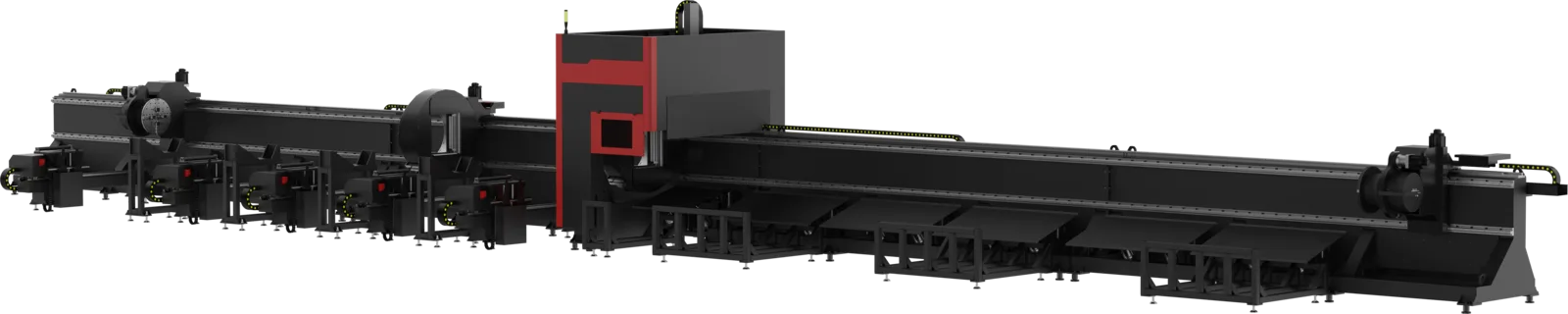

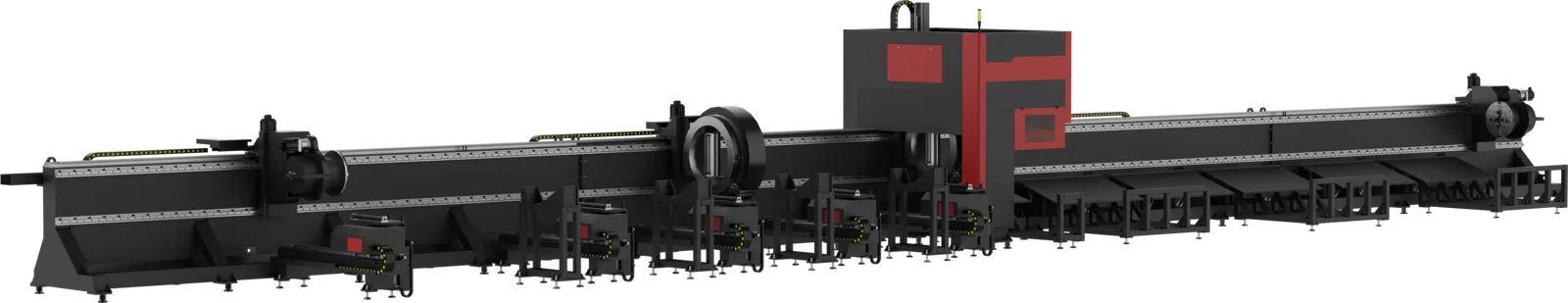

Four Chucks Fiber Tube Cutter

Engineered for Heavy Tubes, Maximum Stability, and Zero Waste.

  • Heavy-Duty Tube Handling
  • Superior Stability
  • High-Efficiency Processing
  • Zero Waste
Learn more about these advantages ↓
Get a Quote WhatsApp
Product Advantages

Engineered for Heavy Tubes, Maximum Stability, and Zero Waste.

Built for Extreme Loads
Heavy-Duty Tube Handling

Built for Extreme Loads

The four-chuck structure securely supports tubes up to 600 mm in diameter and 2T in weight, ensuring stable processing of large and heavy workpieces.

Maximum Rigidity, Maximum Precision
Superior Stability

Maximum Rigidity, Maximum Precision

Additional support points significantly reduce tube sagging and vibration, delivering exceptional cutting accuracy and consistent quality throughout the process.

Faster Throughput, Greater Flexibility
High-Efficiency Processing

Faster Throughput, Greater Flexibility

Bidirectional feeding improves processing efficiency and productivity. An optional dual-head configuration further increases throughput for high-volume production.

Maximize Every Millimeter
Zero Waste

Maximize Every Millimeter

Combined with reverse feeding technology, the machine minimizes remnant material to zero, maximizing material utilization and reducing production costs.

Note: Images are for reference only. Actual product may differ slightly from images.

Technical Specifications

The models shown below represent only a selection of our product portfolio.More configurations and customized solutions are available to meet different application needs and production requirements.

ParameterSpecification
Chuck Size Self-centering Pneumatic Chuck360/600
Max. Loading Length12000mm
Chuck Weight Capacity2T
Unloading LengthCustomizable
Chuck OvertravelOptional Configuration
Bevel Cutting Angle (Optional)±45°
Processing Tube (Length, Diameter)12000mm ф50-ф600mm
Y-Axis Travel12000mm
X, Y Axis Positioning Accuracy±0.05mm
X, Y Axis Repeatability±0.03mm
Overall Dimensions of Main Machine (L × W × H) (mm)≈ 28370 × 4200 × 3550

Specifications are subject to laser power and configuration options. Contact our engineers for a detailed technical proposal tailored to your materials and production volume.
