Sheet Laser Cutting Series

Double-Head Automatic Coiled

More Output. Less Waste. Lower Costs.

Coil-Fed Production
Fully Automated Operation
Higher Material Efficiency
Faster Cutting Performance

Learn more about these advantages ↓

Available Models

HY-30153000 × 1500 mm HY-40154000 × 1500 mm HY-60156000 × 1500 mm

See full specifications ↓

Get a Quote WhatsApp

Product Advantages

More Output. Less Waste. Lower Costs.

Coil-Fed Production

Replace Sheets with Coils

Process metal directly from coil stock, reducing material costs and improving material utilization compared to traditional sheet-fed production.

Fully Automated Operation

Less Labor, More Output

Automated feeding and processing minimize manual intervention, helping reduce labor costs and improve production consistency.

Higher Material Efficiency

Reduce Waste, Save More

Continuous coil processing maximizes material usage and minimizes scrap, lowering overall manufacturing costs.

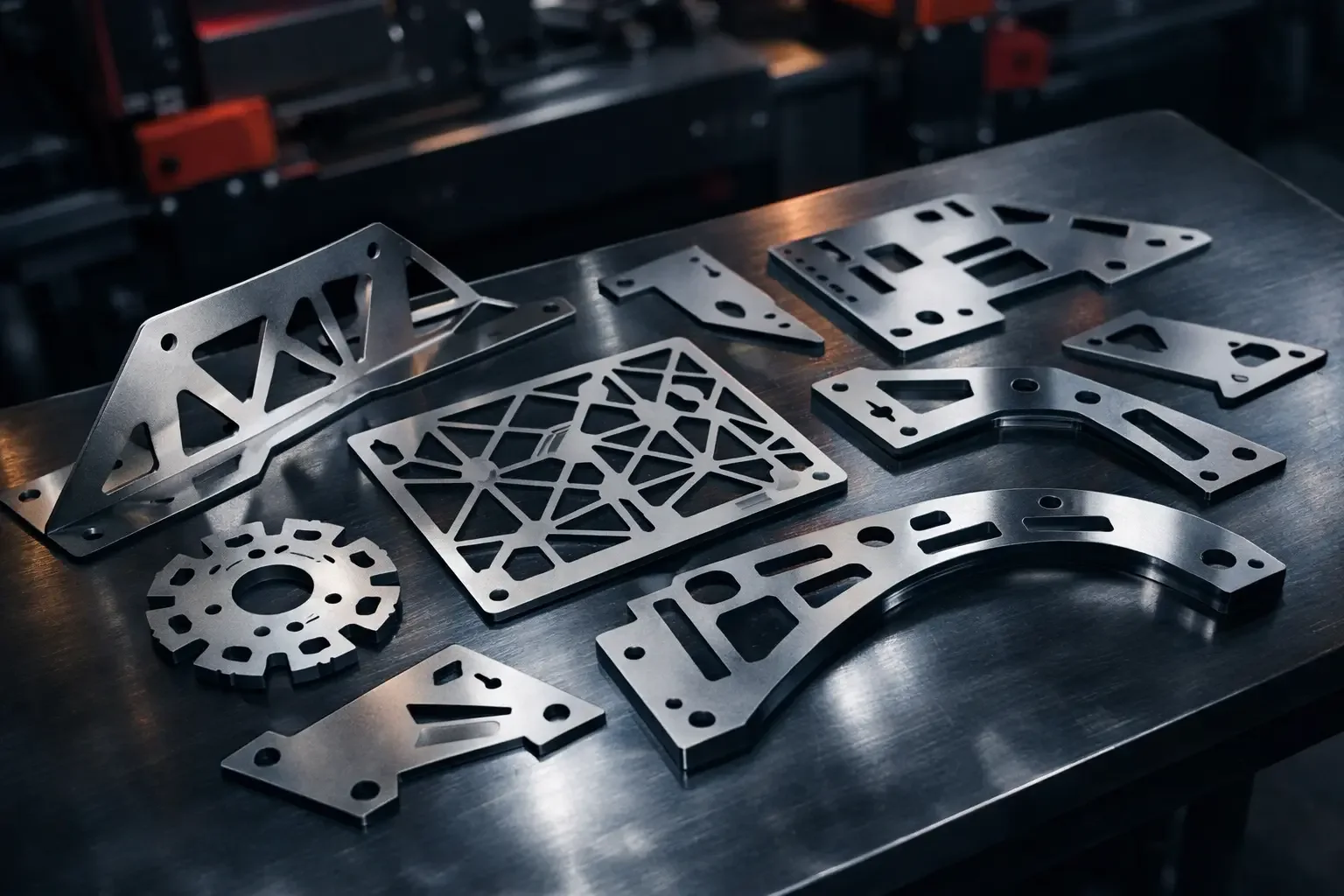

Faster Cutting Performance

Boost Production Speed

Compared with single-head systems, the double-head design delivers higher cutting efficiency and greater throughput for large-scale production.

Note: Images are for reference only. Actual product may differ slightly from images.

Technical Specifications

The models shown below represent only a selection of our product portfolio.More configurations and customized solutions are available to meet different application needs and production requirements.

Parameter	HY-3015	HY-4015	HY-6015
Max. Cutting Sheet Size(L × W)	3000 × 1500	4000 × 1500	6000 × 1500
Feeding width (mm)	500-1500	500-1500	500-1500
Cutting Thickness (mm)	0.5-3.0	0.5-3.0	0.5-3.0
Maximum feeding speed (m/min)	15	15	15
X-Axis Travel (mm)	1520	1520	1520
Y-Axis Travel (mm)	3020	4020	6020
Z-Axis Travel (mm)	100	100	100
X, Y Axis Positioning Accuracy (mm)	±0.03	±0.03	±0.03
X, Y Axis Repeatability (mm)	±0.03	±0.03	±0.03
Max. Positioning Speed (X/Y Axis) (m/min)	70-139	70-139	70-139
Max. Acceleration (X/Y Axis) (G)	1.5	1.5	1.5
Overall Dimensions of Main Machine (L × W × H) (mm)	≈ 13660 × 4000 × 2100	≈ 15660 × 4000 × 2100	≈ 19660 × 4000 × 2100

Specifications are subject to laser power and configuration options. Contact our engineers for a detailed technical proposal tailored to your materials and production volume.

Need Something Different?

If our standard models don't perfectly match your production needs, our engineering team can customize a solution built around your materials, workflow, and volume.

Request Custom Solution
