Profile Cutting Series

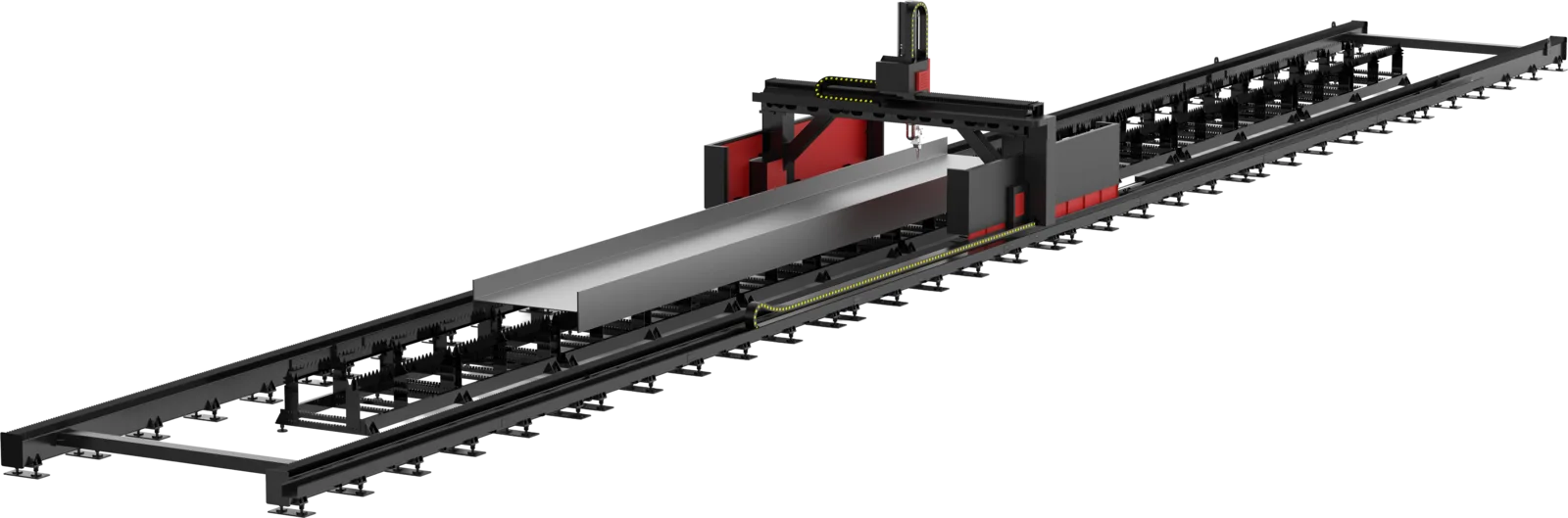

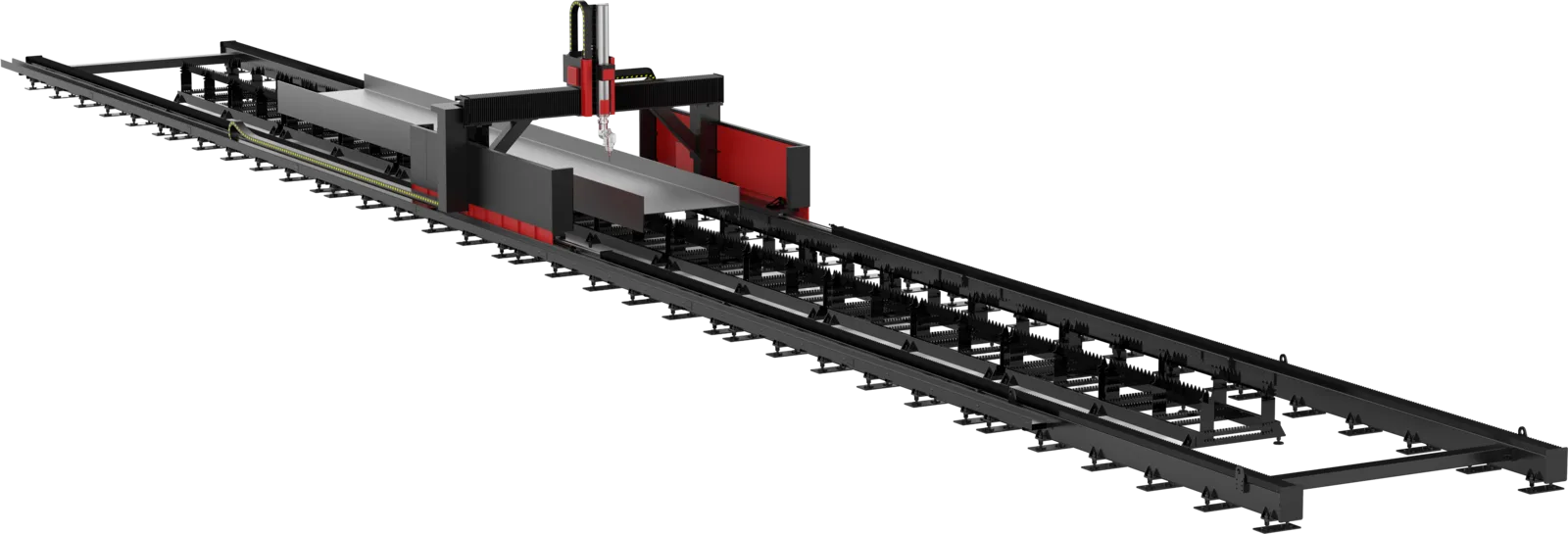

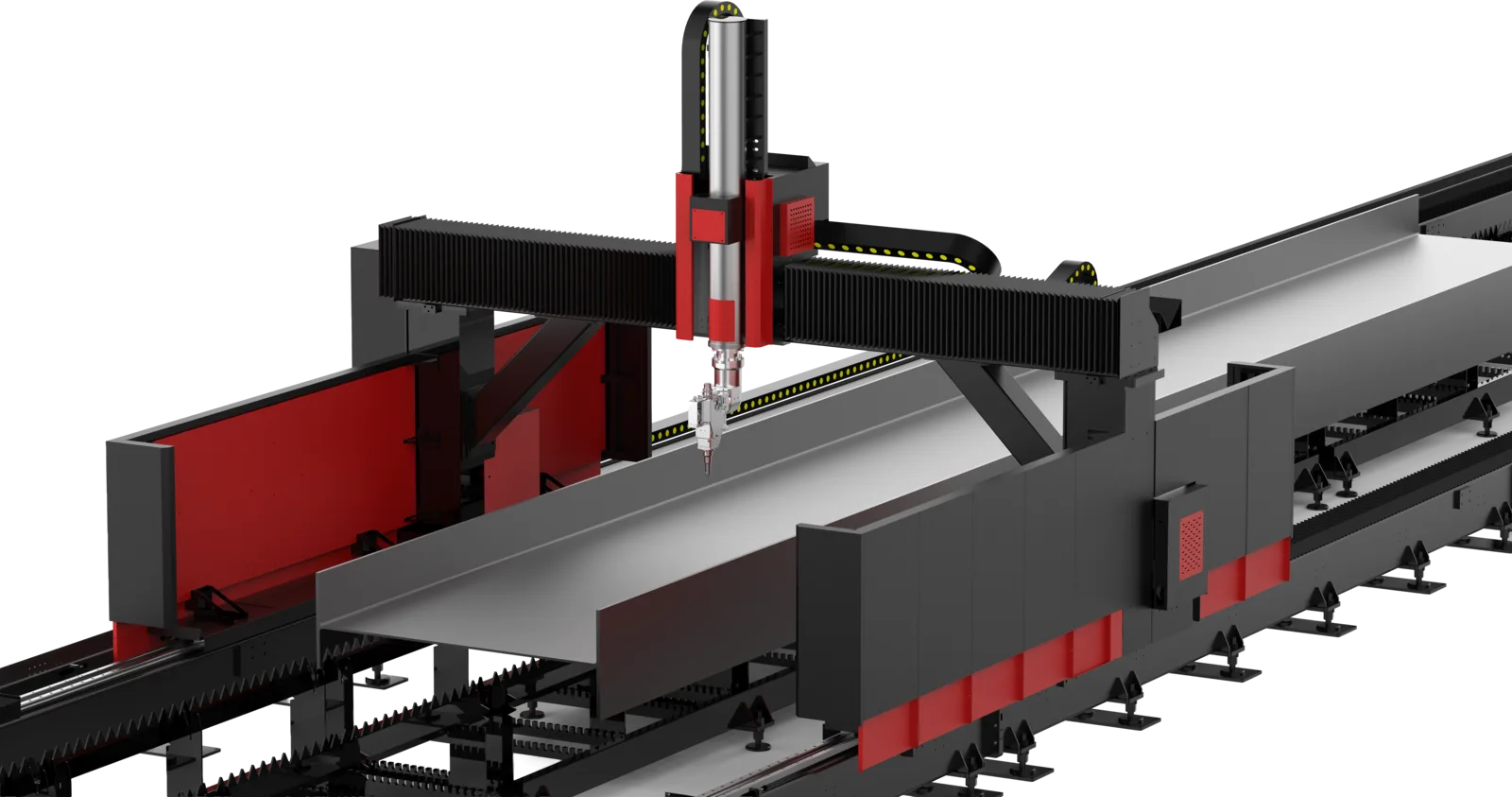

3D 5-Axis Profile Cutter

Built for Structural Steel. Engineered for Efficiency.

Heavy-Duty Performance
All-in-One Automation
Processing for Complex Profiles
3D Five-Axis Cutting

Learn more about these advantages ↓

Available Models

HYDG-1302513000 × 2500 mm HYDG-1602516000 × 2500 mm HYDG-2602526000 × 2500 mm

See full specifications ↓

Get a Quote WhatsApp

Product Advantages

Built for Structural Steel. Engineered for Efficiency.

Heavy-Duty Performance

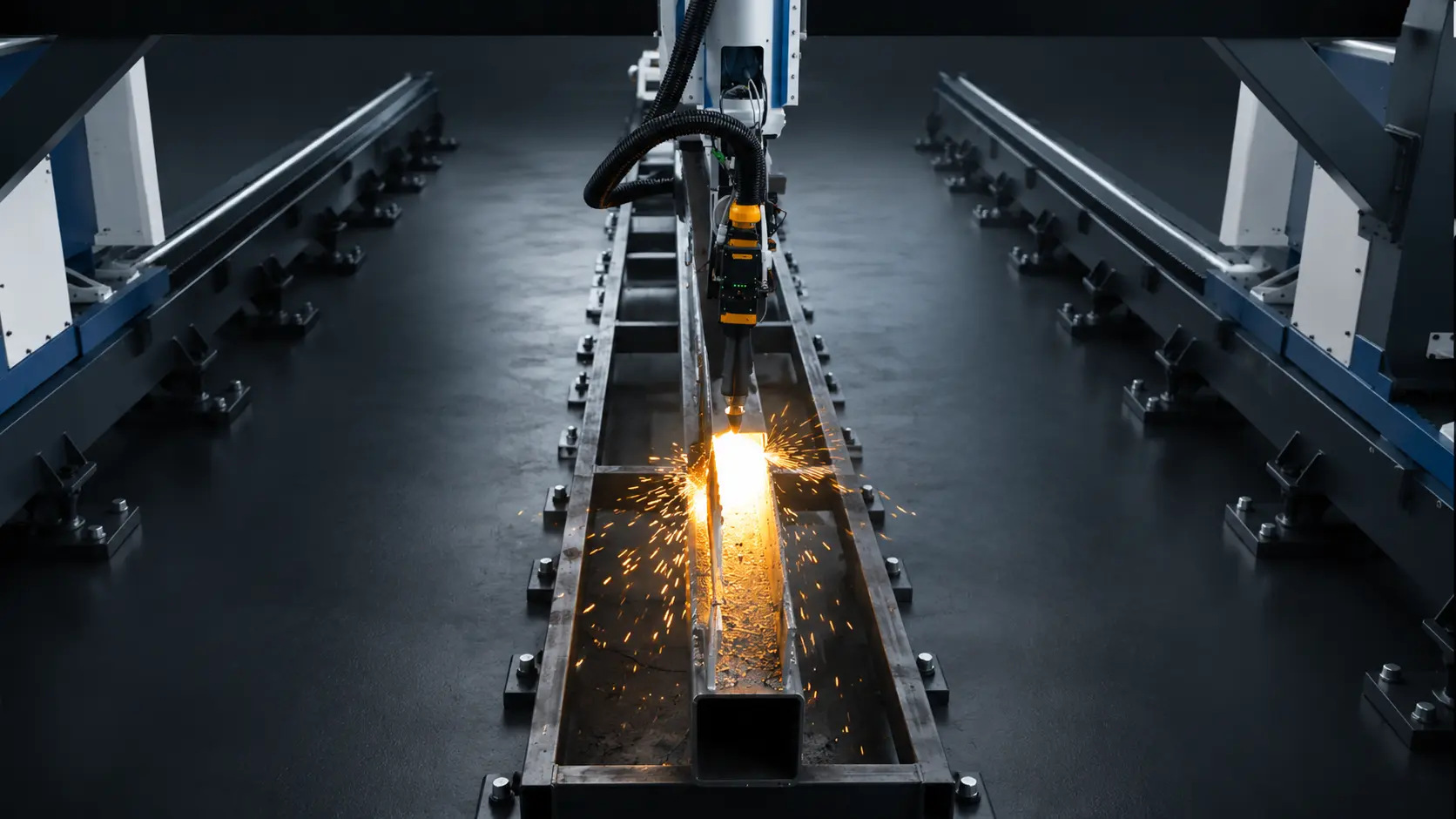

Built for Structural Steel Fabrication

Engineered for steel structures, bridges, and construction machinery applications, delivering reliable and efficient processing for heavy-duty manufacturing environments.

All-in-One Automation

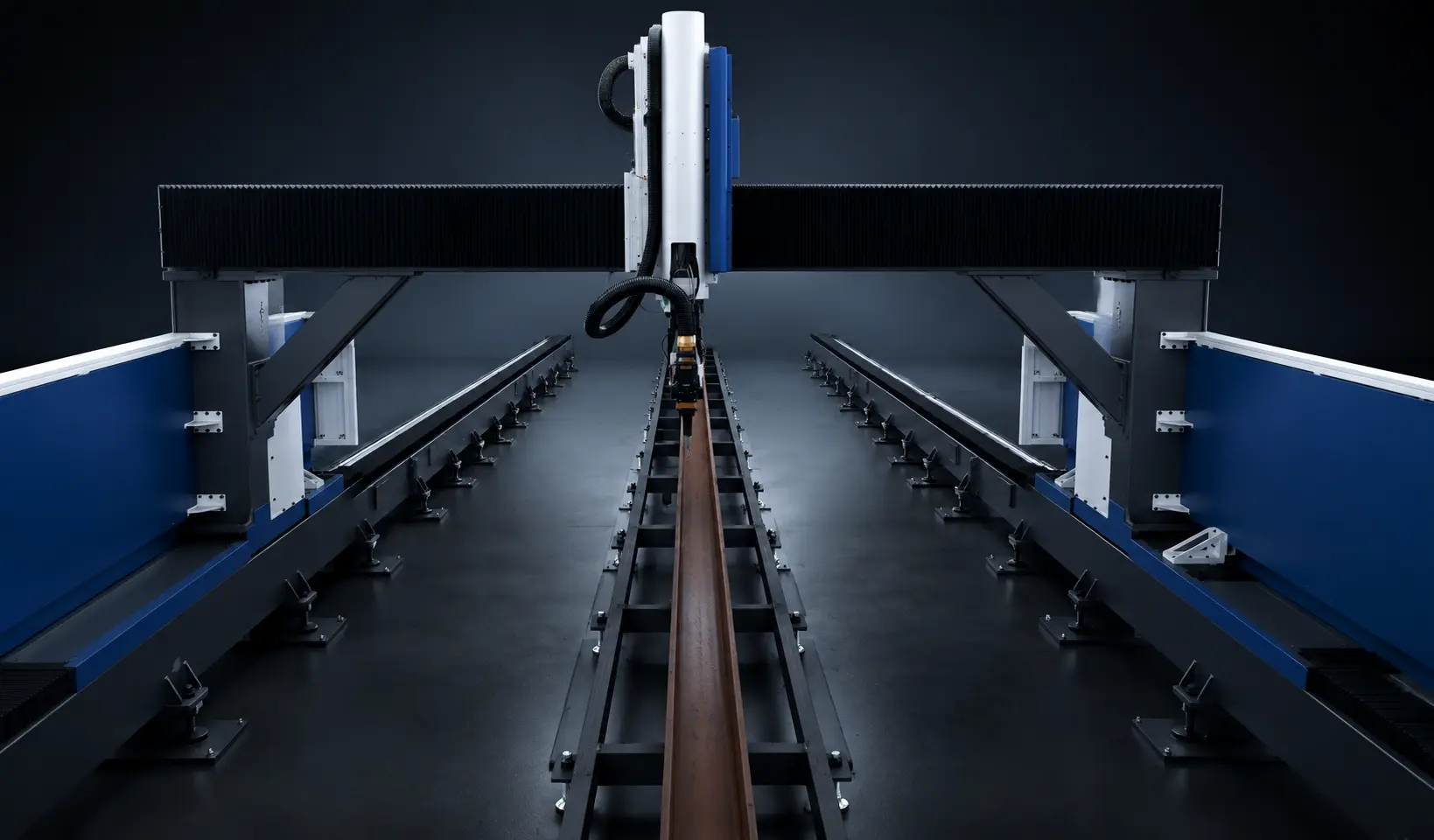

Streamline Your Production

Transform traditional multi-process workflows into a fully integrated production solution, reducing handling, improving efficiency, and simplifying operations.

Processing for Complex Profiles

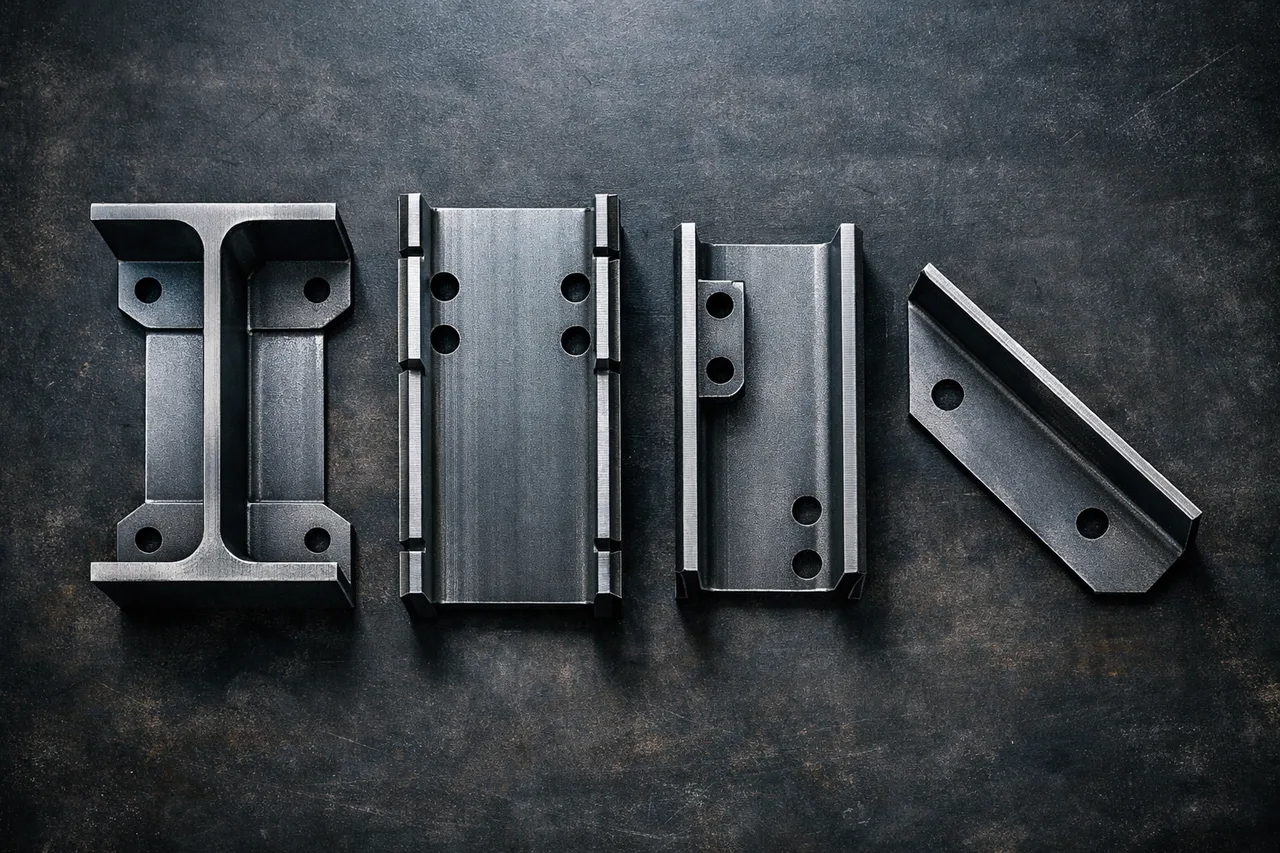

Handle Any Structural Shape

Designed for I-beams, H-beams, channel steel, angle steel, and other structural profiles, ensuring precise and consistent processing of complex cross-sections.

3D Five-Axis Cutting

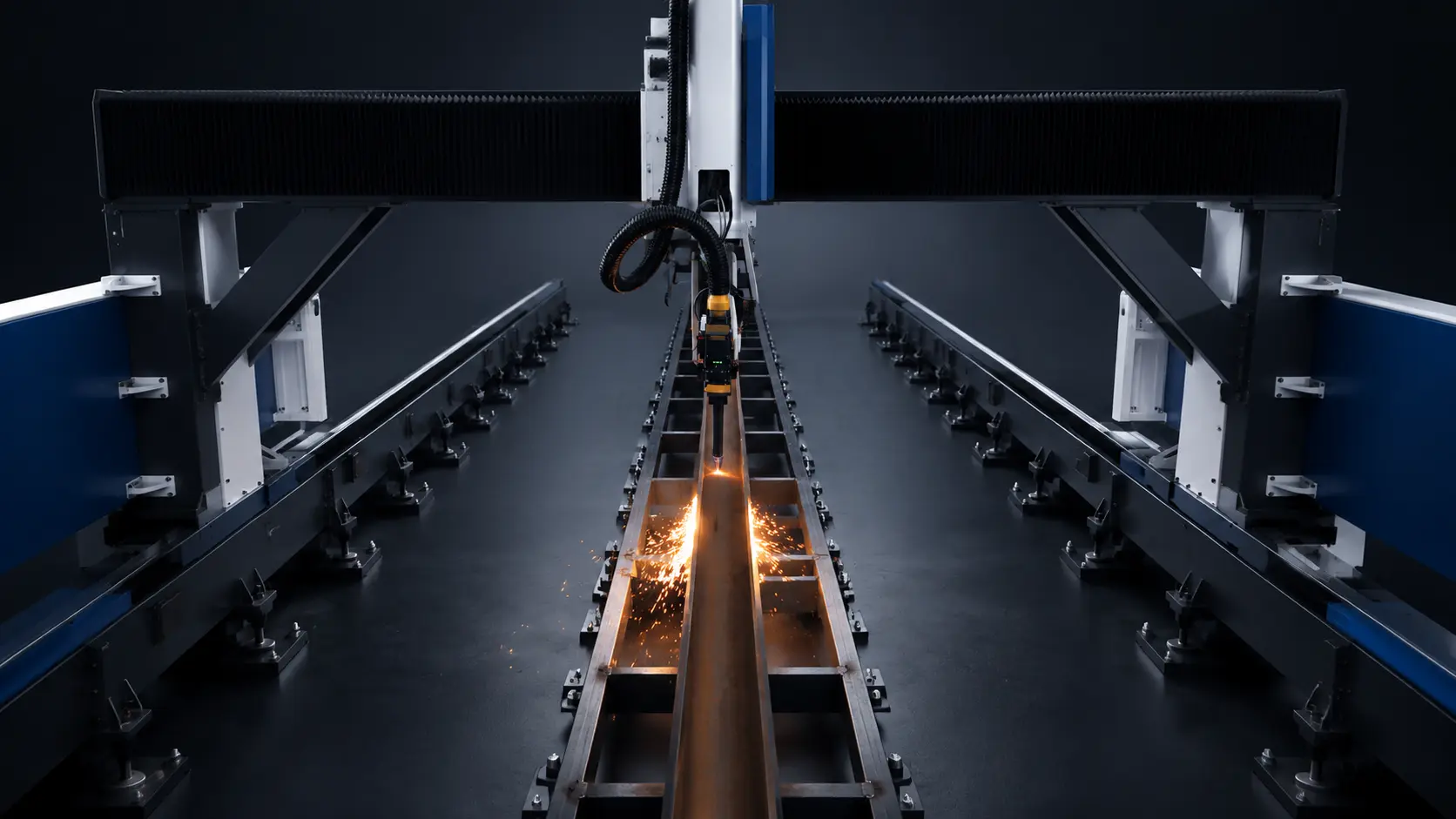

Precision Bevel Cutting

Equipped with a 3D five-axis cutting head, enabling high-precision bevel and contour cutting for demanding fabrication applications with superior accuracy and efficiency.

Note: Images are for reference only. Actual product may differ slightly from images.

Technical Specifications

The models shown below represent only a selection of our product portfolio.More configurations and customized solutions are available to meet different application needs and production requirements.

Parameter	HYDG-13025	HYDG-16025	HYDG-26025
Max. Cutting Sheet Size(L × W)	13000 × 2500	16000 × 2500	26000 × 2500
X-Axis Travel (mm)	2520	2520	2520
Y-Axis Travel (mm)	13020	16020	26020
Z-Axis Travel (mm)	1100	1100	1100
A,C Axis Angle of Rotation	±135°，N*360°	±135°，N*360°	±135°，N*360°
X, Y Axis Positioning Accuracy (mm)	±0.05	±0.05	±0.05
X, Y Axis Repeatability (mm)	±0.03	±0.03	±0.03
Max. Positioning Speed (X/Y Axis) (m/min)	70	70	70
Max. Acceleration (X/Y Axis) (G)	1.0	1.0	1.0
Overall Dimensions of Main Machine (L × W × H) (mm)	≈ 22000 × 4400 × 3400	≈ 26000 × 4400 × 3500	≈ 38000 × 4400 × 3500

Specifications are subject to laser power and configuration options. Contact our engineers for a detailed technical proposal tailored to your materials and production volume.

Need Something Different?

If our standard models don't perfectly match your production needs, our engineering team can customize a solution built around your materials, workflow, and volume.
